T-Stub online calculator
Tool for fast design end/base plates with bolts or anchors in traction.
T-Stub - Check and Design End Plate
Unit force:
ex. \(N\) , \(kN\) etc.
Unit length:
ex. \(mm\) , \(cm\) or \(m\) etc.
\[N_b \]
Axial force of bolt or anchor

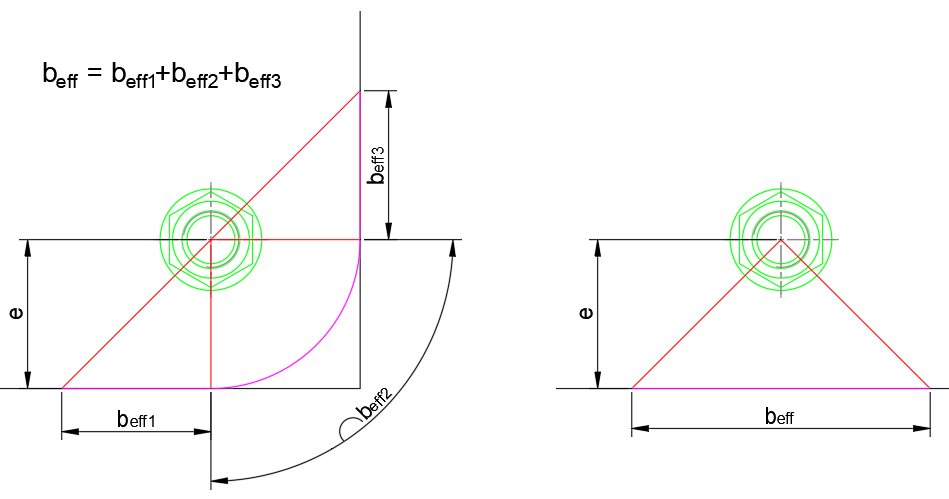

\[ e \]
eccentricity - lever arm
\[ b_{eff} \]
Lenght of plate
\[ t \]
Thickness of plate
\[ f_{yd} \]
Yielding/max stress
