Inputs

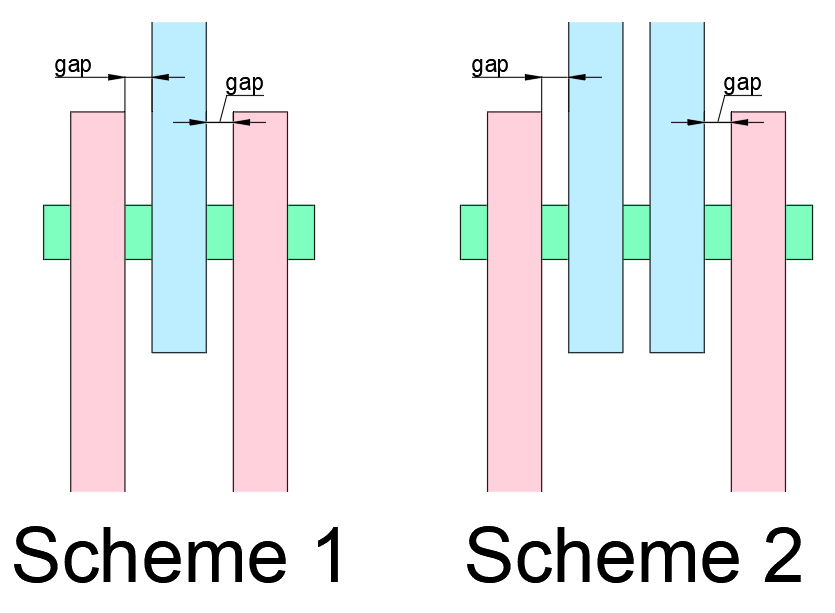

Scheme	Scheme 1 Scheme 2
Forces
N ULS	kN	Axial Force ULS
V ULS	kN	Shear Force ULS
N SLS	kN	Axial Force SLS
V SLS	kN	Shear Force SLS
PIN
Diameter PIN	mm	Diameter of the PIN
fyp	MPa	-
fup	MPa	-
Replaceable	True False	-
Is bolt	False True	-
Central Plate/s
t central	mm	Thickness of central plate/s
fyk	MPa	-
Gap	mm	Gap between central and lateral plate
Lateral Plates
t laterals	mm	Thickness of lateral plate/s
fyk	MPa	-
Safety Factors
\( \gamma_{m0} \)		Safety factor for resistance
\( \gamma_{m2} \)		Safety factor for fracture
\( \gamma_{m6} \)		Safety
